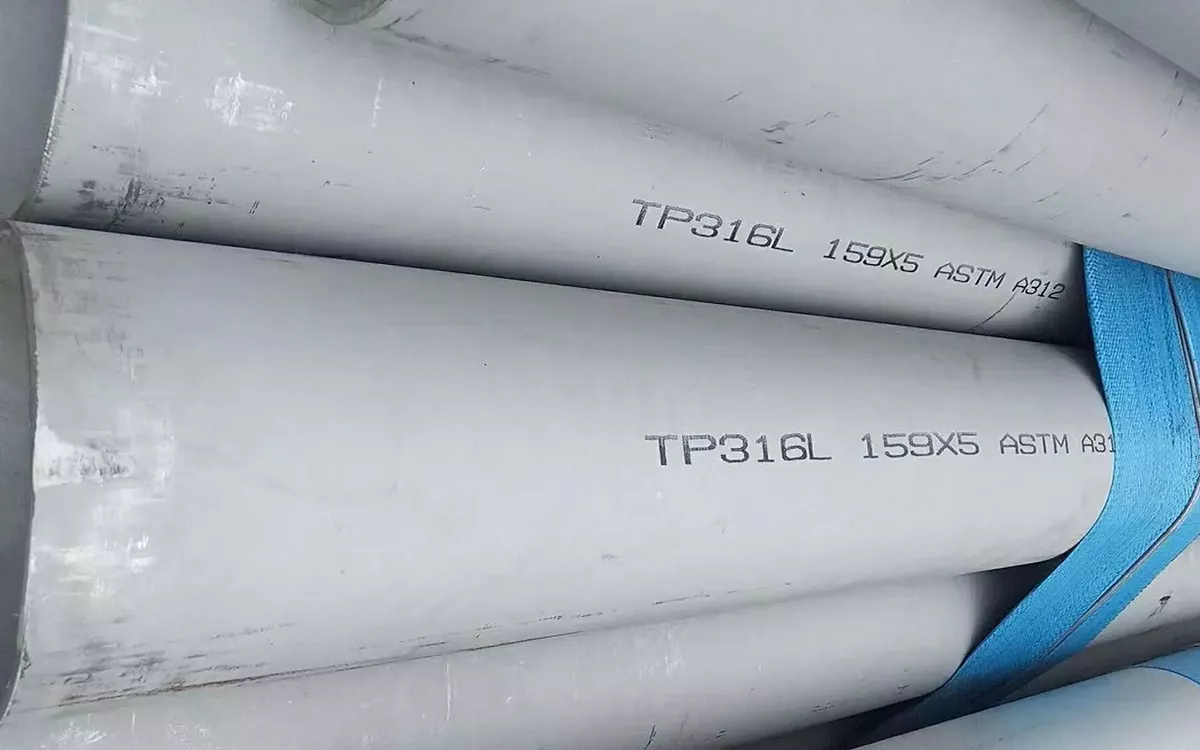

TP316 Stainless Steel Pipes & Tubes

TP316 stainless steel pipes are precision-manufactured from high-grade 316/316L stainless steel for corrosion-resistant industrial applications. With excellent resistance to salt spray, high temperatures, and oxidation, they are widely used in chemical equipment, marine structures, food machinery, and pharmaceutical piping systems. TP316 stainless steel pipes support multiple specifications, thicknesses, and surface treatments, and can be customized according to customer requirements.

TP316 is a molybdenum (Mo)-containing austenitic stainless steel. Compared with 304 stainless steel, it exhibits superior resistance to pitting and crevice corrosion in marine environments, chemical processing, and high-salinity conditions. Its low-carbon version, TP316L, provides enhanced weldability and resistance to intergranular corrosion, making it suitable for heavy-duty welded components.

• Key Advantages: High temperature/high pressure resistance, excellent resistance to chloride corrosion, non-magnetic or low magnetic.
• Applicable Standards: ASTM A312 (seamless pipes), ASTM A213 (boiler/heat exchanger tubes), ASTM A269 (general-purpose fluid tubes).
• Main Grade Equivalents: UNS S31600, 1.4401 (DIN), SUS 316 (JIS).

Specifications of TP316 Stainless Steel Pipes & Tubes

Our TP316 Stainless Steel Pipes & Tubes Product Range

TP316 Material Advantages

• Excellent Corrosion Resistance: Performs better than TP304 in chloride-containing environments, suitable for marine and chemical applications.
• Good Machinability and Weldability: Can be bent, welded, and cold-formed.
• Strong Resistance to Stress Corrosion Cracking: Maintains stable performance under high temperature and high pressure conditions.
• High-Temperature Application Stability: Can be used for long-term service below 870°C.

TP316 Stainless Steel Pipes & Tubes Chemical Composition

TP316 Stainless Steel Pipes & Tubes Mechanical Properties

*L: longitudinal elongation; *T: transverse elongation.

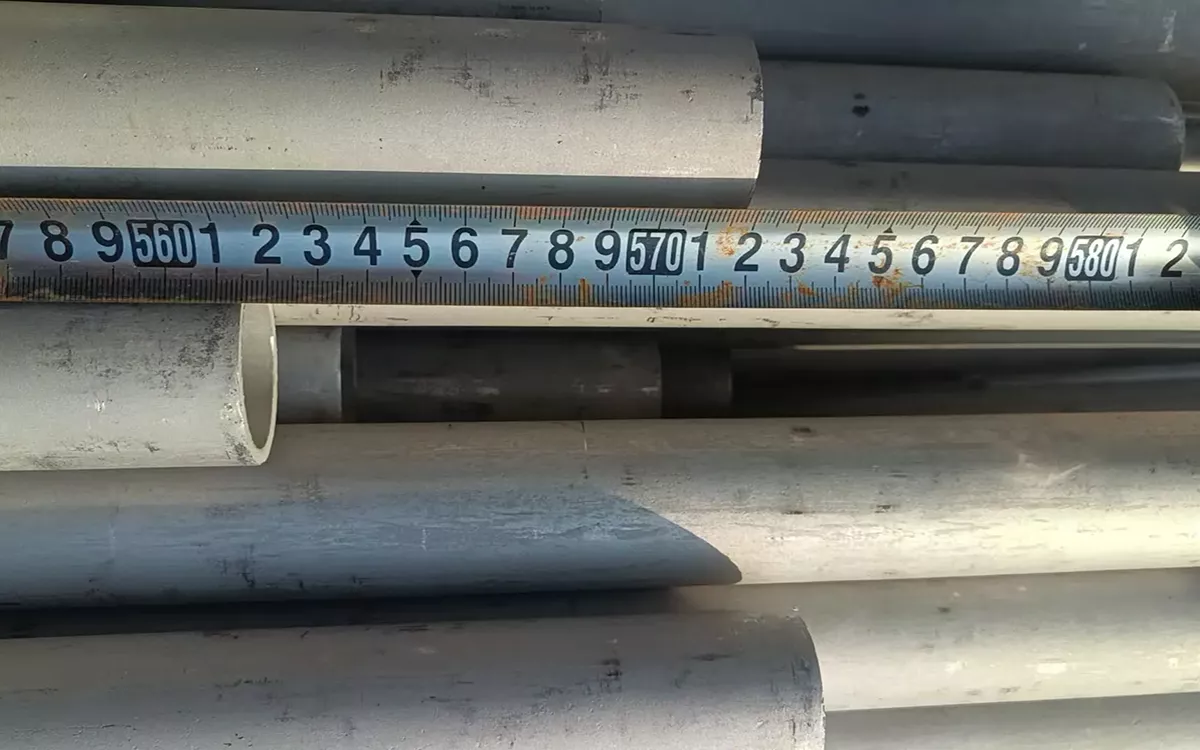

TP316 Steel Pipes & Tubes Sizes, Dimensions & Tolerances

*t: nominal wall thickness; D: ordered outside diameter.

TP316 Steel Pipes & Tubes Applications

Chemical Industry Piping

Suitable for highly corrosive media and acidic/alkaline environments.

Marine Engineering & Shipbuilding

Excellent resistance to salt spray and stress corrosion cracking (SCC).

Food Machinery & Pharmaceuticals

Optional food-grade polished surfaces to meet hygiene standards.

Petroleum, Natural Gas & Energy Engineering

Stable long-term operation in high-temperature and high-pressure environments.

Marine Engineering & Coastal Facilities

• Requirement: Chloride corrosion resistance, suitable for high-salt spray environments.
• Recommended: TP316 / TP316L seamless pipes.
• Application: Seawater desalination equipment, shipbuilding, offshore drilling platform piping systems.

High-End Manufacturing & Semiconductors

• Requirement: Extremely low surface roughness, high cleanliness (e.g., EP tubes).
• Recommended: TP316L electro-polished tubes.
• Features: Surface roughness Ra ≤ 0.35μm, cleaned with ultra-high purity nitrogen, suitable for photovoltaic, biopharmaceutical, and specialty gas transport.

Petrochemical & Heat Exchangers

• Requirement: High-temperature resistance, resistant to organic acid corrosion.
• Recommended: TP316Ti (titanium-stabilized) or large-diameter welded pipes.
• Application: Heat exchangers, condensers, refinery catalytic cracking units.

Precision Instruments & Fluid Transport

• Requirement: Pressure resistance, vibration resistance, high dimensional accuracy.
• Recommended: TP316 precision seamless coils.
• Advantages: Lengths up to several hundred meters, reduced welding seams, lower leakage risk, suitable for hydraulic systems and instrumentation piping.

TP316 vs. TP304

• Corrosion Resistance: 316 contains molybdenum, with far superior resistance to chlorides and acidic/alkaline corrosion compared to 304.
• Cost: 316 is generally more expensive than 304, but offers longer service life in highly corrosive environments, providing better value.
• Selection Recommendation: Use 304 for ordinary environments; 316 is essential for coastal, outdoor, or chemical plant applications.

TP316 vs. TP316L

• Chemical Composition: 316L has a lower carbon content (≤0.035%).
• Weldability: 316L does not require solution annealing after welding and still maintains excellent resistance to intergranular corrosion.
• Selection Recommendation: For thick-walled welded structures or components operating in high-temperature environments, 316L is recommended to avoid sensitization corrosion.

TP316 Stainless Steel Pipes & Tubes – Certification & Quality Assurance

Ensuring the highest standards of quality and reliability, our TP316 stainless steel pipes & tubes are manufactured and tested to meet strict international standards, providing full traceability and certification for industrial and chemical applications.

Manufacturing & Testing Standards

• Fully compliant with ASTM A312, A269, and A213 standards.
• Comprehensive quality control throughout the production process to ensure precise dimensions, superior corrosion resistance, and high-temperature performance.

Certification & Traceability

• EN 10204 3.1 Material Test Certificates provided for every batch, guaranteeing full material traceability and authenticity.
• Independent third-party inspections from SGS, BV, TUV, and DNV, ensuring compliance with global quality standards.

Factory Qualifications

• Certified under ISO 9001 Quality Management System for consistent manufacturing excellence.
• Equipped with specialized high-pressure and high-temperature pipe manufacturing licenses, demonstrating capability for critical industrial applications.

TP316 Stainless Steel Pipes & Tubes Purchasing & Inquiry Guide

To ensure you receive an accurate quotation, please provide the following information when inquiring:

• Product Standard: ASTM A312 / A213 / EN?
• Material: TP316 / TP316L?
• Dimensions: Outer Diameter × Wall Thickness × Length.
• Quantity: in meters or tons.
• Special Requirements: Surface polish grade, whether hydrostatic testing is required, third-party inspection requests.
• Delivery Lead Time: Standard stock orders shipped within 7-15 days; customized orders 15-30 days.
• Packaging Method: Standard export wooden crates or bundling, pipe ends capped for protection, inner anti-rust paper wrapping.

TP316 Stainless Steel Pipes & Tubes Frequently Asked Questions (FAQ)

Q: Does TP316L stainless steel pipe have magnetic properties?

A: In the annealed state, TP316L has an austenitic structure and is generally non-magnetic. However, slight magnetism may occur after cold working (e.g., bending, polishing).

Q: What are the advantages of EP tubes (electro-polished tubes)?

A: Electro-polishing removes surface oxide scales and micro-protrusions, forming a dense passive film. It provides excellent corrosion resistance and prevents particle adhesion, making it an ideal choice for semiconductor and pharmaceutical industries.

Q: Do you accept small-batch or sample orders?

A: Yes. We provide custom sample services, and the minimum order quantity (MOQ) can be negotiated based on actual stock availability.
