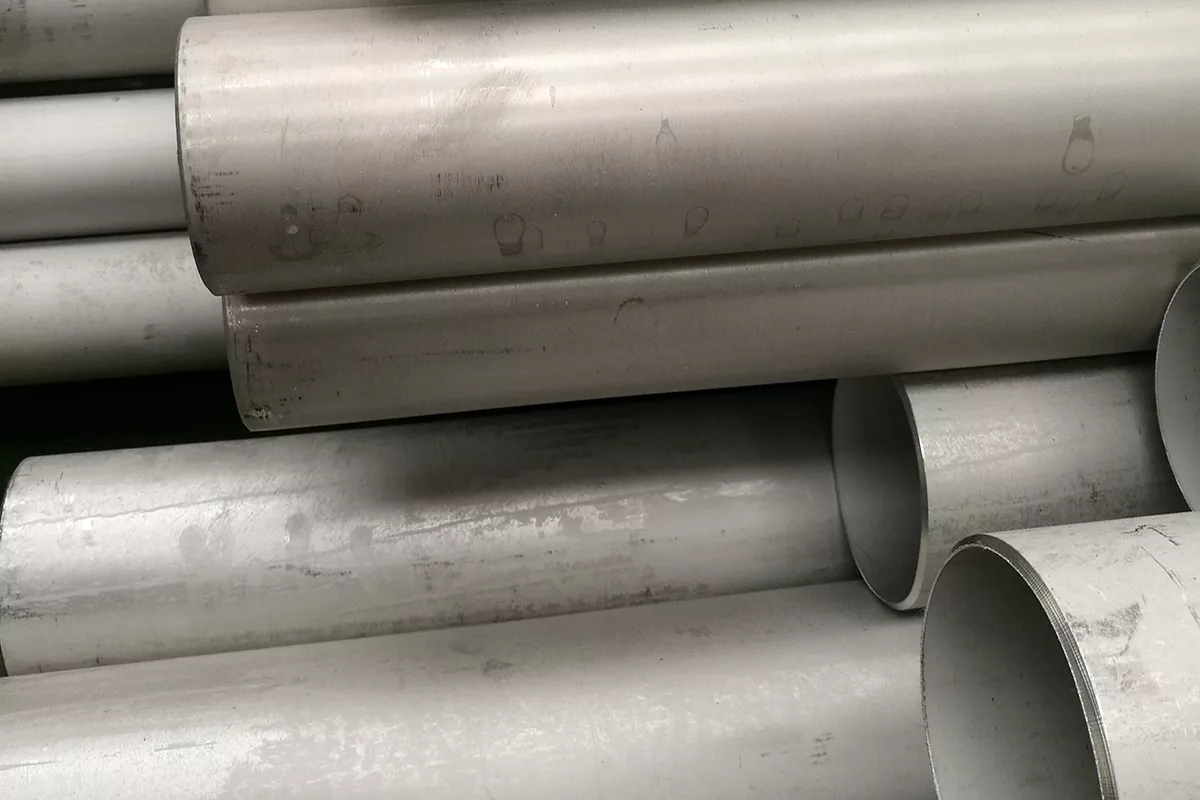

ASTM A312 TP316Ti Stainless Steel Pipes & Tubes | Titanium Stabilized for High-Temperature Service

TP316Ti stainless steel pipe is a titanium-stabilized version of 316 stainless steel, designed to prevent carbide precipitation during prolonged exposure to high temperatures.

When your project requires stainless steel piping capable of withstanding the most demanding high-temperature and corrosive environments, ASTM A312 / ASME SA312 TP316Ti stainless steel pipes provide unparalleled stability and service life. This titanium-stabilized 316 series stainless steel represents the pinnacle of austenitic stainless steel technology, specially engineered to eliminate sensitization and maintain excellent corrosion resistance under extreme conditions.

The core of TP316Ti’s outstanding performance lies in its titanium content (at least four times the carbon content). Titanium combines with carbon to form titanium carbides rather than chromium carbides. This stabilization process ensures that even under high temperatures or after welding, TP316Ti retains its full chromium content in solid solution, thereby maintaining its excellent corrosion resistance.

Specifications of ASTM A312 TP316Ti Stainless Steel Pipes

Standard: ASTM A312 / ASME SA312
Grade: TP316Ti (UNS S31635)
Type: Seamless / Welded

TP316Ti Stainless Steel Pipes & Tubes Features

Titanium stabilization prevents intergranular corrosion
Performs excellently in environments of 500–800°C
Improved creep resistance
Longer service life under thermal cycling conditions

Chemical Composition of TP316Ti Stainless Steel

Element	Content (wt%)
Carbon (C)	≤ 0.08%
Chromium (Cr)	16.0 – 18.0%
Nickel (Ni)	10.0 – 14.0%
Molybdenum (Mo)	2.0 – 3.0%
Titanium (Ti)	5 × C - 0.70% (min 0.2%)
Manganese (Mn)	≤ 2.0%
Silicon (Si)	≤ 1.0%
Phosphorus (P)	≤ 0.045%
Sulfur (S)	≤ 0.030%

Mechanical Properties of TP316Ti Stainless Steel

Property	Minimum Requirement
Tensile Strength	515 MPa (75 ksi)
Yield Strength (0.2% offset)	205 MPa (30 ksi)
Elongation (in 2")	35%
Hardness (Brinell)	≤ 217 HB
Creep Rupture Strength	110 MPa at 650°C (1202°F) for 10,000 hours

Equivalent Material of 316Ti Pipes

Grade	UNS No	Old British		Euronorm		Swedish SS	Japan Industrial Standard
		British Standards	European Standards	Werkstoff no	Name
316Ti Stainless Steel	S31635	320S31	X6CrNiMoTi17-12-2	1.4571	Z6CNDT17‐12	08Ch17N13M2T	SUS 316Ti

316Ti Stainless Steel Tubing Physical Properties

Grade	Density	Elastic Modulus	Mean Coeff. of Thermal Expansion			Thermal Conductivity		Specific Heat 0 To 1000C	Electrical Resistivity
			0 To 1000 C	0 To 3150 C	0 To 5380 C	at 1000 C	at 5000 C
316L	8000	193	15.9	16.2	17.5	16.3	21.5	500	740

ASME SA 312 TP316Ti Welded Pipe Tolerance

Outer Diameter in MM	Tolerance in MM
35 to 38	+/- 0.15
4 to 35	+/- 0.08
60 and above	+/- 0.25
38 to 60	+/- 0.20

Applications of TP316Ti Stainless Steel Pipes & Tubes

ASTM A312 TP316Ti stainless steel pipes perform exceptionally well in applications requiring high-temperature performance and long-term corrosion resistance:

Petrochemical refining: furnace tubes, catalytic reformers, and thermal cracking units operating at 600–870°C (1112–1600°F)
Power generation: boilers, superheaters, reheaters, and steam headers in coal-fired and combined-cycle power plants
Chemical processing: high-temperature reactors, ethylene cracking units, and chlor-alkali plants
Aerospace and defense: jet engine components and high-temperature exhaust systems
Heat treatment equipment: furnace linings and radiant tubes exposed to cyclic high temperatures
Nuclear industry: steam generators and heat exchangers requiring excellent corrosion resistance

Advantages of Titanium Stabilization in ASTM A312 TP316Ti Stainless Steel Pipes

The addition of titanium in TP316Ti brings transformative advantages for extreme environment applications:

Complete resistance to sensitization: titanium preferentially forms carbides, preventing chromium depletion at grain boundaries even after prolonged high-temperature exposure.
Enhanced high-temperature strength: maintains structural integrity at temperatures where TP316 and TP316L may experience creep deformation.
Weld joint stability: no post-weld heat treatment required while maintaining corrosion resistance in the heat-affected zone.
Long-term durability: eliminates intergranular corrosion paths, extending service life in corrosive environments.
Cost-effective performance: delivers high-temperature performance comparable to nickel-based alloys at a significantly lower cost.

Quality Inspection of TP316Ti Stainless Steel Pipes

Our ASTM A312 TP316Ti pipes undergo rigorous testing to ensure they meet the demanding requirements of high-temperature applications:

100% ultrasonic testing for seamless pipes
Eddy current testing for welded pipes
Hydrostatic pressure testing at 1.5 times the design pressure
Tensile, yield, and elongation tests to verify mechanical properties
Intergranular corrosion testing (ASTM A262 Practice E) to confirm titanium stabilization
Microstructure analysis to verify titanium carbide formation and austenitic phase balance
Chemical composition verification to ensure the titanium-to-carbon ratio meets specifications (minimum 4:1)
Compliance with ASME B36.19 standards for dimensional accuracy and wall thickness uniformity

Why Choose TP316Ti Stainless Steel Pipes?

Better resistance to sensitization than standard 316 grades
Ideal for high-temperature welded applications
Reliable performance in corrosive and aggressive environments
Reduced maintenance and longer service life
Suitable for critical industrial systems

FAQ

Q: What is the difference between TP316Ti and TP321 stainless steel?

A: Both are titanium-stabilized austenitic stainless steels, but TP316Ti contains molybdenum (2–3%), whereas TP321 does not. The addition of molybdenum gives TP316Ti superior resistance to pitting and crevice corrosion in chloride environments, making it a better choice for applications involving salt, seawater, or chemical chlorides.

Q: Can TP316Ti pipes replace TP316 or TP316L pipes?

A: Yes, TP316Ti can generally replace TP316 and TP316L in most applications, especially in high-temperature or welded scenarios. However, due to titanium carbide formation, TP316Ti may have slightly lower formability and higher processing costs.

Q: What is the maximum operating temperature of TP316Ti pipes?

A: TP316Ti stainless steel can continuously operate at temperatures up to 870°C (1600°F) in oxidizing environments. For reducing environments or applications involving thermal cycling, consult our technical team for temperature limits based on your specific operating conditions.

Q: Are TP316Ti pipes available in welded form?

A: Yes, we supply both seamless and welded TP316Ti pipes in accordance with ASTM A312 specifications. Welded TP316Ti pipes are particularly suitable for low-pressure, high-temperature applications where titanium stabilization ensures corrosion resistance in the heat-affected zone.
