ASTM A213 TP316Ti Stainless Steel Tubes & Pipes | Stabilized Tubing for Boilers & Heat Systems

ASTM A213 TP316Ti tubes are specifically designed for high-temperature heat exchange systems, where long-term structural stability is critical.

What is ASTM A213 / ASME SA213 TP316Ti?

ASTM A213/ASME SA213 TP316Ti standards specify seamless titanium-stabilized austenitic stainless steel tubes, primarily used in boilers, superheaters, and heat exchangers operating under high temperature and high pressure conditions. This standard is an improved version of TP316, which controls the addition of titanium to bind with carbon atoms, thereby preventing the formation of chromium carbides at grain boundaries during high-temperature service.

ASTM A213/ASME SA213 TP316Ti is a premium choice for seamless stainless steel tubes in critical heat transfer systems. Its titanium stabilization provides excellent resistance to sensitization and intergranular corrosion at elevated temperatures, while retaining the outstanding corrosion resistance and pitting resistance of the 316 series stainless steels. For applications that demand extremely high levels of reliability, durability, and performance under severe high-temperature and corrosive conditions, TP316Ti tubing is an ideal solution.

In the petrochemical industry, equipment is required to withstand internal pressures of several megapascals at temperatures around 650°C. The titanium element in SA213 TP316Ti not only provides resistance to sensitization but, more importantly, enhances high-temperature deformation strength by refining the grain structure and strengthening the material.

The A213 TP316Ti tubes we supply are manufactured using advanced cold drawing or cold rolling processes, ensuring superior concentricity and meeting the most stringent requirements of ASME BPVC Section I (Power Boilers) and Section VIII (Pressure Vessels). They are the preferred core material for skid-mounted equipment manufacturers and petrochemical EPC contractors.

TP316Ti Stainless Steel Tubes & Pipes Chemical Composition (ASTM A213/ASME SA213 Standard)

Element	Content Range	Purpose
Carbon (C)	≤ 0.08%	Base element
Chromium (Cr)	16.00-18.00%	Corrosion resistance
Nickel (Ni)	10.00-14.00%	Austenite stabilization
Molybdenum (Mo)	2.00-3.00%	Pitting/crevice corrosion resistance
Titanium (Ti)	5×C min, 0.70% max	Stabilization (binds carbon)
Manganese (Mn)	≤ 2.00%	Strength
Silicon (Si)	≤ 1.00%	Deoxidizer
Phosphorus (P)	≤ 0.045%	Impurity control
Sulfur (S)	≤ 0.030%	Impurity control
Nitrogen (N)	≤ 0.10%	Strength enhancement

Mechanical Properties of TP316Ti Tubes (Minimum Requirements)

Property	Value
Tensile Strength	515 MPa (75 ksi) min
Yield Strength (0.2% offset)	205 MPa (30 ksi) min
Elongation	35% min
Hardness	192 HB max, 200 HV max, 90 HRB max

Titanium Stabilization: The Performance Enhancer

The addition of titanium creates a fundamental improvement over standard TP316/316L grades:

Sensitization Resistance: Titanium binds carbon atoms, preventing their combination with chromium to form chromium carbides (Cr₂₃C₆) at grain boundaries during exposure to 430-900°C (800-1650°F)
Intergranular Corrosion Protection: Eliminates chromium depletion zones, maintaining corrosion resistance even after prolonged high-temperature service
High-Temperature Stability: Maintains structural integrity at continuous service temperatures up to 900°C (1650°F)
Creep Strength: Enhanced creep resistance compared to 316L, with ~30% higher yield strength at 550°C
Weldability: Excellent weldability without post-weld heat treatment requirement for most applications

Applications of TP316Ti Stainless Steel Pipes & Tubes

TP316Ti tubes excel in demanding thermal cycling and corrosive heat transfer environments:

Industry	Application	Performance Benefit
Power Generation	Boiler tubes, superheaters, reheaters	Resists steam oxidation and thermal fatigue
Petrochemical	Heat exchangers, process piping	Withstands aggressive media and high-temperature hydrocarbons
Chemical Processing	Condensers, evaporators, reactor coils	Resists acids, alkalis, and chlorides
Oil & Gas	Refinery heaters, air coolers	Handles sour crude and corrosive process streams
Desalination	Evaporator tubes	Combats chloride-induced pitting in brine environments
Pharmaceutical	Sterilization equipment	Maintains purity and corrosion resistance at high temperatures

Manufacturing & Heat Treatment Requirements

Production Method: Seamless process only (electric-arc furnace melting with argon-oxygen decarburization recommended)
Heat Treatment: Solution annealing at ≥1040°C (1900°F) followed by water quenching for full austenitization and maximum corrosion resistance
Finish: Hot-finished or cold-finished, with pickled or bright annealed surface options

Testing & Quality Assurance of TP316Ti Stainless Steel Tubes (ASTM A213/ASME SA213)

Test Type	Requirement	Purpose
Hydrostatic or Electric Test	100% of tubes	Verify pressure integrity
Tensile Test	Per lot	Confirm mechanical properties
Hardness Test	Per lot	Ensure proper heat treatment
Flaring/Flattening Test	Per lot	Evaluate ductility
Intergranular Corrosion Test	As specified	Verify stabilization effectiveness
Microstructure Examination	As specified	Confirm austenitic structure

TP316Ti vs. TP316/TP316L: Key Performance Differences

Property	TP316Ti	TP316	TP316L
Carbon Content	≤0.08%	≤0.08%	≤0.03%
Titanium Addition	Yes (5×C min)	No	No
High-Temp Strength	Excellent	Good	Fair
Sensitization Resistance	Excellent	Poor	Good (limited)
Creep Resistance	Excellent	Good	Moderate
Cost	Premium	Standard	Standard

Why Choose TP316Ti for Critical Heat Transfer?

Longer Service Life: Reduced risk of intergranular corrosion failure in high-temperature cyclic operations
Lower Maintenance: Fewer replacements due to enhanced thermal stability and corrosion resistance
Higher Reliability: Eliminates chromium carbide precipitation issues that plague standard 316 grades
Design Flexibility: Can operate at higher temperatures than TP316/316L without sacrificing performance
Code Compliance: Meets ASME B31.1 (Power Piping) and B31.3 (Process Piping) requirements for critical applications

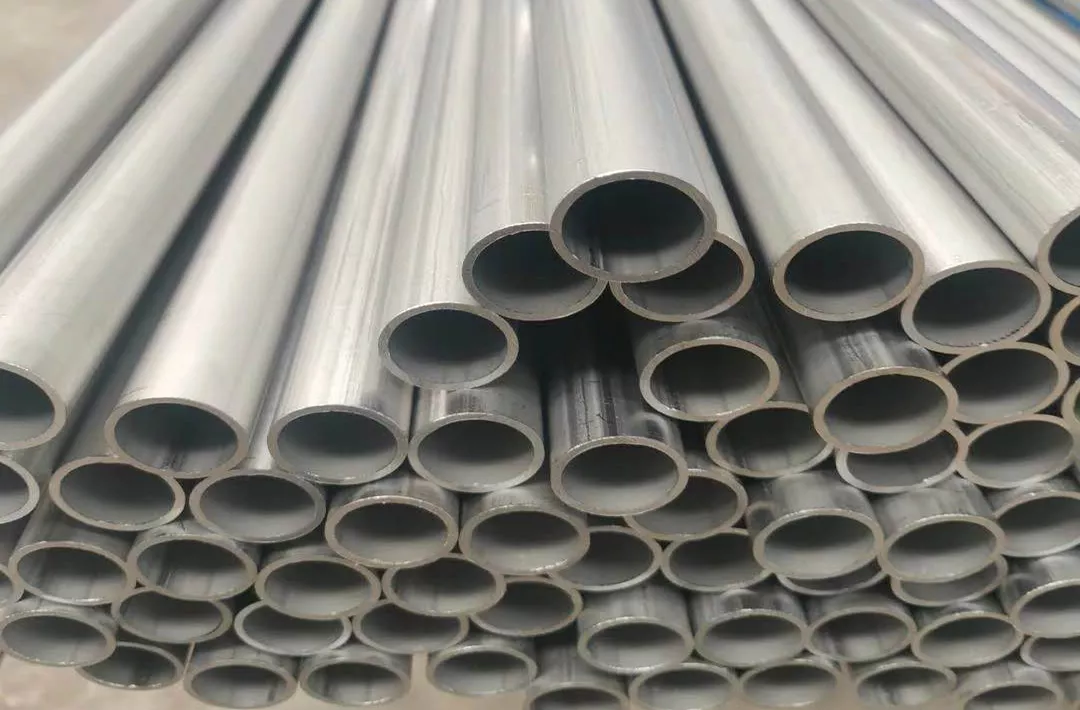

ASTM A213 / ASME SA213 TP316Ti Stainless Steel Tubes & Pipes
